Single Shaft Paddle Mixer - Xinxiang Dongzhen Machinery Co., Ltd.

Product Description

Horizontal mixer adopts an inner and outer double blade design, symmetrical installation, and special structural arrangement to ensure high mixing uniformity and short mixing time, only 1-3 minutes. Single axis paddle mixer is also equipped with a liquid addition system, which can flexibly add various liquids. Suitable for industries such as feed, additives, chemicals, pesticides, dyes, and food.

Application

Application of Single Axis Paddle Mixer

The horizontal mixer has high mixing uniformity and short mixing cycle, and is suitable for industries such as feed, additives, chemicals, pesticides, dyes, and food. 1. Food industry: Mixers can be used to mix solid and liquid components together, for making various foods and additives. 2. Cosmetics industry: mixer can be used to mix various active ingredients together to prepare lotion, face cream, etc. 3. Chemical and manufacturing industries: Mixers can be used to mix different chemical substances together to make plastics, dyes, pigments, adhesives, etc. 4. Agriculture and animal husbandry: The mixer can be used to mix different types of feed and additives together to produce nutrient balanced feed.

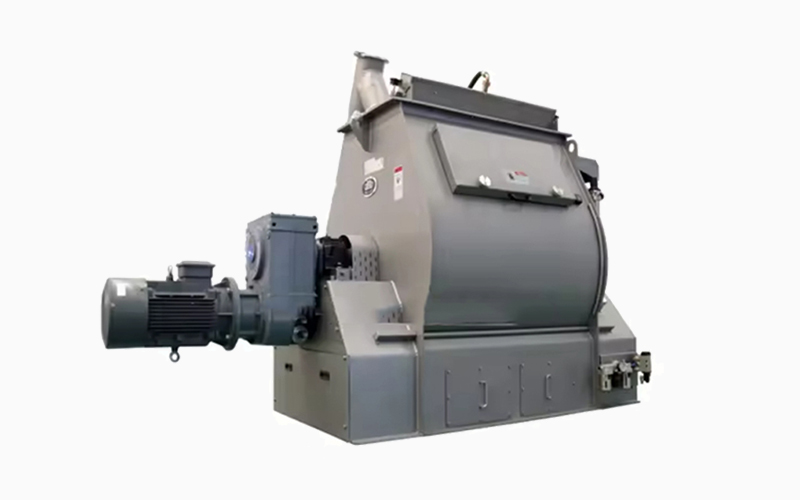

Machine Show

◆ Carbon steel or stainless steel materials can be selected according to different uses

◆ Equipped with a liquid addition system that can add various liquids (water, oil, honey, etc.)

◆ Double layer blade design inside and outside, symmetrical installation, special arrangement structure, higher mixing uniformity, shorter mixing cycle, and higher production efficiency; Mixing time 1-3 minutes, coefficient of variation CV ≤ 5%

◆ Adopting a hard tooth surface reducer and direct connection transmission with the rotor; Smooth and reliable transmission, long service life, and low maintenance cost

Adopting a fully extended door opening form, the material is discharged quickly to ensure no residue and prevent cross contamination

◆ Equipped with safety interlock devices to ensure personal safety

Model	Power(kw)	Effective volume(m³)	Mixed weight (t/p)	Mixing time(min)
CW-0.5	5.5	0.5	250	1-3
CW-1.0	15	1.0	500
CW-2.0	22	2.0	1000
CW-4.0	37	4.0	2000
CW-6.0	45	6.0	3000
CW-8.0	90	8.0	4000
Note: Batch mixing according to material bulk density 0.5t/m³
